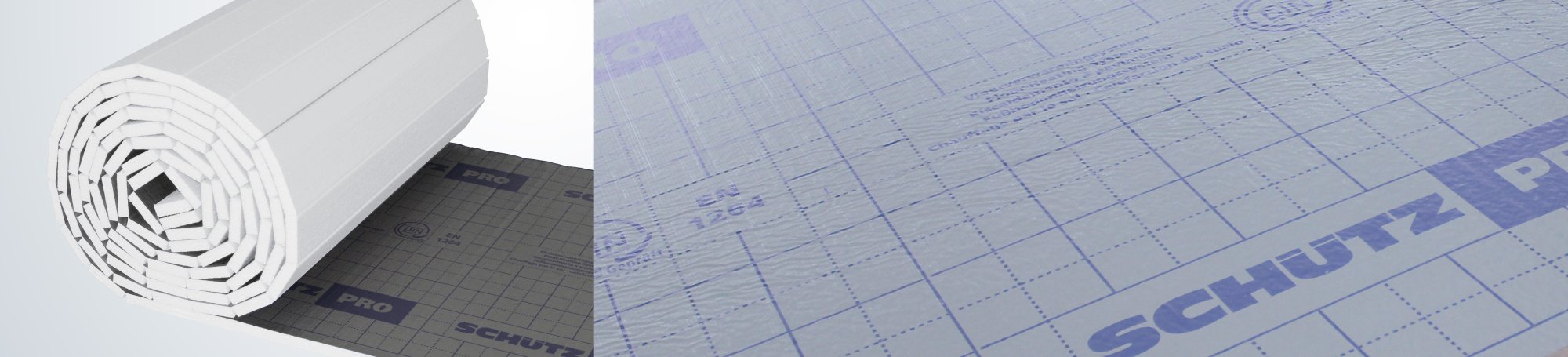

ultra-Takk Pro tacker panel system
Roll out – Tack – Finished!

The practical alternative when underfloor heating is installed across larger areas.


System features:

  • Tacker system technology: improved retention force
  • High installation rate
  • Thermal and impact sound insulation from expanded polystyrene high-resistance foam EPS-T according to EN 13163
  • Plastic coating with interwoven fibres and 5 cm grid pattern as screed damp proofing according to EN 18560 and for securing the pipes
  • Blunt edge
  • Long-sided 30 mm upper layer overlap for covering joins
  • Now with adhesive tape as standard
Suitable for duo-flex und tri-o-flex® system heating pipes
14 x 2 mm | 16 x 2 mm| 17 x 2 mm| 20 x 2 mm


Gesamtkatalog 2023

Entdecken Sie das Produktsortiment von SCHÜTZ.

Download PDF
Data sheet system panels

Tacker panel system ultra-takk PRO

Download PDF
Tackersystem

Kapitel 4

Download PDF


Product Variants

Type EPS-T 35-3 (DES sm)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.80 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 15
Impact sound reduction effect ΔLw,R
31 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 32 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
no
Article number
4032237
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.80 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 15
Impact sound reduction effect ΔLw,R
31 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 32 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
no
Article number
4032237
Packaging unit
10.00 m²/role
add to watchlist

Type EPS-T 30-3 (DES sm)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD
0.68 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction effect ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 27 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
no
Article number4028087
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD
0.68 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction effect ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 27 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
no
Article number4028087
Packaging unit
10.00 m²/role
add to watchlist

Type EPS-T 30-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD
0.77 m² K/W
Thermal resistance λD
0.039 W/mK (WLG 040)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
yes
Article number
4032238
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD
0.77 m² K/W
Thermal resistance λD
0.039 W/mK (WLG 040)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
yes
Article number
4032238
Packaging unit
10.00 m²/role
add to watchlist

Type EPS-T 20-2 (DES SG)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.46 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029022
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.46 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029022
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.80 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 15
Impact sound reduction effect ΔLw,R
31 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 32 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
no
Article number
4032237
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD
0.68 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction effect ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 27 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
no
Article number4028087
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD
0.77 m² K/W
Thermal resistance λD
0.039 W/mK (WLG 040)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
yes
Article number
4032238
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.46 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029022
Packaging unit
10.00 m²/role
add to watchlist

Product Variants

Type EPS-T 25-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.57 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction effect ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 23 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029021
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.57 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction effect ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 23 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029021
Packaging unit
10.00 m²/role
add to watchlist

Type EPS-T 20-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.46 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029022
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.46 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029022
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.57 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction effect ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 23 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029021
Packaging unit
10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal conductivity RD
0.46 m² K/W
Thermal resistance λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 30
Impact sound reduction effect ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
Panel size
1,000 x 10,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
yes
Article number4029022
Packaging unit
10.00 m²/role
add to watchlist

*acc. to DIN 4109-34: 2016-07 for areal screed mass ≥ 120 kg/m²
