quadro-takk PRO

Schütz quadro-Takk PRO - The square folding roll in five variants.

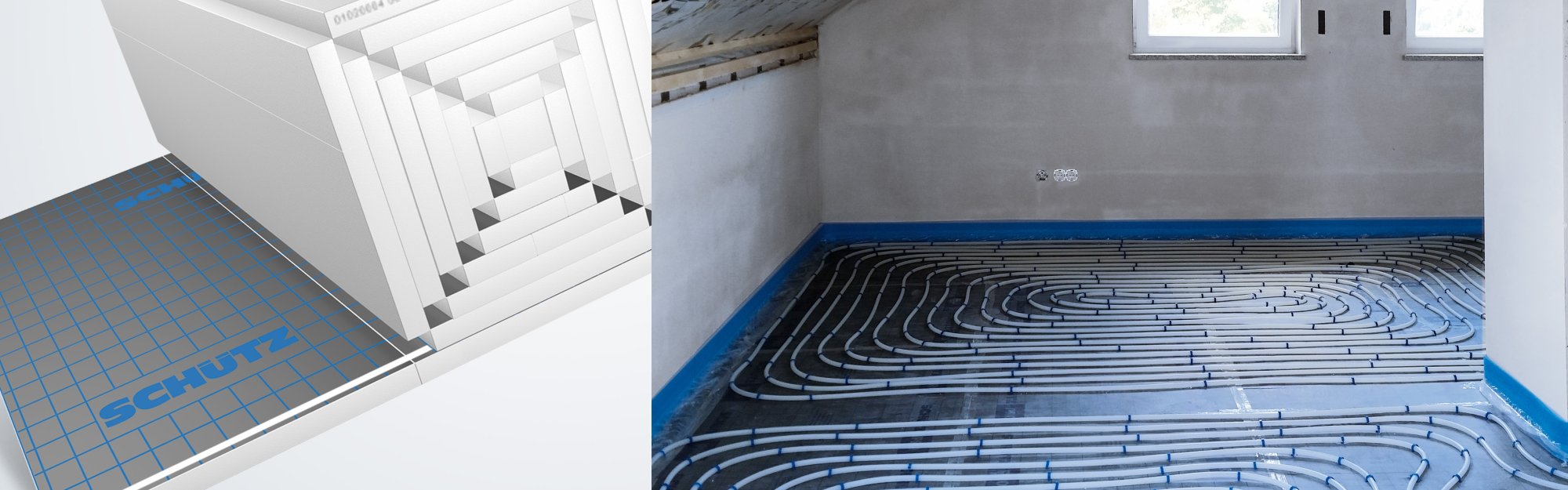

An ingenious principle: optimum laying features, easy transport and storage. Stable, 8 mm pipe clamps for secure fixing of SCHÜTZ heating pipes. A practical mounting device provides fast and safe tacking support.


System features:

  • Tacker system technology: improved retention force
  • High installation rate
  • EPS-T folding roll
  • DIN-certified
  • Quality-monitored
  • Plastic coating with interwoven fibres
  • Long-sided 30 mm upper layer overlap for covering joins
  • 10.3 m² per folding roll
  • Now available with adhesive strips
Suitable for duo-flex und tri-o-flex® system heating pipes
14 x 2 mm | 16 x 2 mm | 17 x 2 mm | 20 x 2 mm
Gesamtkatalog 2023

Entdecken Sie das Produktsortiment von SCHÜTZ.

Download PDF
Data sheet system panels

Tacker panel system quadro-takk PRO

Download PDF
Tackersystem

Kapitel 4

Download PDF



Product Variants

Type EPS-T 35-3 (DES sm)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.80 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 15
Impact sound reduction ΔLw,R
31 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 32 mm
Roll size
1,000 x 8,100 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
no
Article number
4001067
Packaging unit
8.1 m²/role
PU/Pallet
64.80 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.80 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 15
Impact sound reduction ΔLw,R
31 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 32 mm
Roll size
1,000 x 8,100 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
no
Article number
4001067
Packaging unit
8.1 m²/role
PU/Pallet
64.80 m²
add to watchlist

Type EPS-T 30-3 (DES sm)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.68 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 27 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
no
Article number
4001070
Packaging unit
10.3 m²/role
PU/Pallet
 82.40 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.68 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 27 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
no
Article number
4001070
Packaging unit
10.3 m²/role
PU/Pallet
 82.40 m²
add to watchlist

Type EPS-T 30-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.77 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040)
Dynamic stiffness
SD 30
Impact sound reduction ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
yes
Article number
4001076
Packaging unit
10.3 m²/Rolle
PU/Pallet
82.40 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.77 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040)
Dynamic stiffness
SD 30
Impact sound reduction ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
yes
Article number
4001076
Packaging unit
10.3 m²/Rolle
PU/Pallet
82.40 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.80 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 15
Impact sound reduction ΔLw,R
31 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 32 mm
Roll size
1,000 x 8,100 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
no
Article number
4001067
Packaging unit
8.1 m²/role
PU/Pallet
64.80 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.68 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 27 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
4 kPa (acc. to EN 13163)
Type of installation
two-ply
Higher traffic load
no
Article number
4001070
Packaging unit
10.3 m²/role
PU/Pallet
 82.40 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.77 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040)
Dynamic stiffness
SD 30
Impact sound reduction ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Type of installation
single-layer
Higher traffic load
yes
Article number
4001076
Packaging unit
10.3 m²/Rolle
PU/Pallet
82.40 m²
add to watchlist

Product Variants

Special variant

Type EPS-T 30-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 1000 kg/m2
Thermal resistance RD
0.88 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Dynamic stiffness
SD 30
Impact sound reduction ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
10 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-

Type of installation
single-layer
Higher traffic load
no
Article number
4021316
Packaging unit
10.3 m²/Rolle
PU/Pallet
82.40 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 1000 kg/m2
Thermal resistance RD
0.88 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Dynamic stiffness
SD 30
Impact sound reduction ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
10 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-

Type of installation
single-layer
Higher traffic load
no
Article number
4021316
Packaging unit
10.3 m²/Rolle
PU/Pallet
82.40 m²
add to watchlist

Type EPS-T 25-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.57 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 23 mm
Roll size
1,000 x 12,200 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-
Type of installation
two-ply
Higher traffic load
yes
Article number
4001074
Packaging unit
12.2 m²/role
PU/Pallet
97.60 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.57 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 23 mm
Roll size
1,000 x 12,200 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-
Type of installation
two-ply
Higher traffic load
yes
Article number
4001074
Packaging unit
12.2 m²/role
PU/Pallet
97.60 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 1000 kg/m2
Thermal resistance RD
0.88 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Dynamic stiffness
SD 30
Impact sound reduction ΔLw,R
27 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
Roll size
1,000 x 10,300 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
10 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-

Type of installation
single-layer
Higher traffic load
no
Article number
4021316
Packaging unit
10.3 m²/Rolle
PU/Pallet
82.40 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m2
Thermal resistance RD
0.57 m² K/W
Thermal conductivity λD
0.044 W/mK (WLG 045)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 23 mm
Roll size
1,000 x 12,200 mm
Packaging unit
600 x 600 x 1,000 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-
Type of installation
two-ply
Higher traffic load
yes
Article number
4001074
Packaging unit
12.2 m²/role
PU/Pallet
97.60 m²
add to watchlist

*acc. to DIN 4109-34: 2016-07 for areal screed mass ≥ 120 kg/m²
