With adhesive strips!

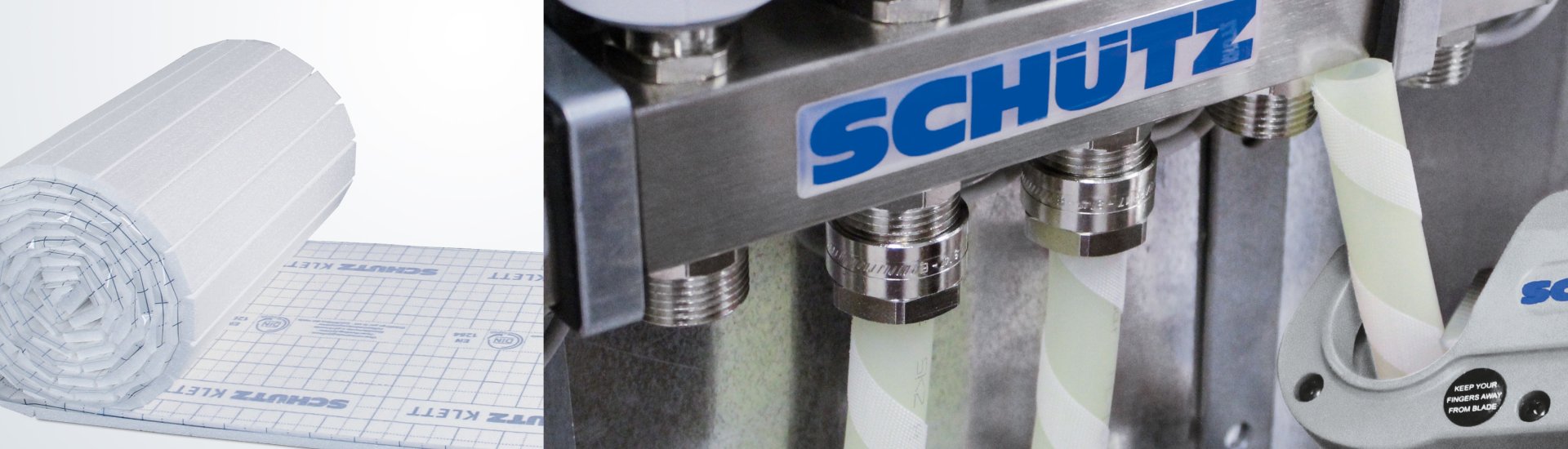

Schütz KLett system insulation roll
for easy installation.


The new hook and loop system facilitates installation of underfloor heating systems thereby representing efficient and clean one-man installation accompanied by maximum retention force and tried-and-tested SCHÜTZ quality.


System features:

  • High installation rate
  • Thermal and impact sound insulation from expanded polystyrene high resistance foam EPS-T according to EN 13163
  • Plastic coating with interwoven fibres and 5 cm grid pattern as screed damp proofing according to EN 18560 and for securing the pipes
  • Blunt edge
  • Long-sided 30 mm upper layer overlap
  • Now available with adhesive strips
Suitable for duo-flex Klett heating pipe systems
14 x 2 mm | 16 x 1,8 mm | 17 x 2 mm
Broschüre SCHÜTZ Klettsysteme

Lösungen für jedes Anwendungsgebiet

Download PDF
Gesamtkatalog 2023

Entdecken Sie das Produktsortiment von SCHÜTZ.

Download PDF
Data sheet system panels

Klett system insulation roll

Download PDF


Klettsystem

Kapitel 5

Download PDF


Product Variants

type EPS-T 30-3 (DES sm)

Technical data
ÖNORM
 B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.68 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 20
Impact sound reduction effect ΔLw,R29 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 27 mm
Panel size1,000 x 10,000 mm
Max. load capacity4 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028604
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
 B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.68 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 20
Impact sound reduction effect ΔLw,R29 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 27 mm
Panel size1,000 x 10,000 mm
Max. load capacity4 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028604
Packaging unit10.00 m²/role
add to watchlist

type EPS-T 30-2 (DES sg)

Technical data
ÖNORM
 B 6000: EPS-T 650 kg/m²
Thermal conductivity RD  0.77 m² K/W
Thermal resistance λD0.039 W/mK (WLG 040)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 28 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationsingle-pass
Higher traffic loadyes
Article number4028603
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
 B 6000: EPS-T 650 kg/m²
Thermal conductivity RD  0.77 m² K/W
Thermal resistance λD0.039 W/mK (WLG 040)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 28 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationsingle-pass
Higher traffic loadyes
Article number4028603
Packaging unit10.00 m²/role
add to watchlist

TYPE EPS-T 20-2 (DES SG)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.46 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 18 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028599
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.46 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 18 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028599
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
 B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.68 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 20
Impact sound reduction effect ΔLw,R29 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 27 mm
Panel size1,000 x 10,000 mm
Max. load capacity4 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028604
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
 B 6000: EPS-T 650 kg/m²
Thermal conductivity RD  0.77 m² K/W
Thermal resistance λD0.039 W/mK (WLG 040)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 28 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationsingle-pass
Higher traffic loadyes
Article number4028603
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.46 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 18 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028599
Packaging unit10.00 m²/role
add to watchlist

Product Variants

Type EPS-T 25-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD0.57 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 20
Impact sound reduction effect ΔLw,R29 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 23 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028600
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD0.57 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 20
Impact sound reduction effect ΔLw,R29 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 23 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028600
Packaging unit10.00 m²/role
add to watchlist

Type EPS-T 20-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.46 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 18 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028599
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.46 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 18 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028599
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD0.57 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 20
Impact sound reduction effect ΔLw,R29 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 23 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028600
Packaging unit10.00 m²/role
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal conductivity RD 0.46 m² K/W
Thermal resistance λD0.044 W/mK (WLG 045)
Dynamic stiffnessSD 30
Impact sound reduction effect ΔLw,R27 dB*
Fire behavior RtFE (EN 13501-1)
Panel thicknessdL - c = 18 mm
Panel size1,000 x 10,000 mm
Max. load capacity5 kPa (acc. to EN 13163)
Type of installationtwo-ply
Higher traffic loadyes
Article number4028599
Packaging unit10.00 m²/role
add to watchlist

*acc. to DIN 4109-34: 2016-07 for areal screed mass ≥ 120 kg/m²
