SCHÜTZ Iberica

AQUATONNE –
Easy access and storage.

The design and the full-opening lid of the Aquatonne allow for easy cleaning and a convenient handling for mixing and dissolving additives, fertilisers and other products. Thus suitable for water storage as well as other uses in the agricultural, pharmaceutical and food industry.

The Aquatonne is:


  • Robust
  • Made of polyethylene (HDPE) and colour pigmented
  • Protected against solar radiation
  • Apt for drinking water, liquids for human consumption (such as wine, oil, etc.) as well as other liquids compatible with HDPE
  • 100 % recyclable
  • Specifically designed for the storage of all kind of food in maceration, easy access for handling product mixtures and cleaning

The Aquatonne offers:

  • Removable lid for a complete access to its interior
  • Light
  • Reduced space for storage and transport
  • Apt for the hygienic conservation of water to maintain its organoleptic properties (colour, smell, taste)
  • Possibility of outdoor installation
  • Complies with current legislation
  • Easy assembly and connection


Ⓐ

Removable lid with bayonet fitting.


Ⓑ

Connection hole (inlet, outlet) with internal thread S75, with adapter to 2“ internal thread with flat joint and 2“ plug with external thread andf O-ring.


Ⓒ

250 mm opening with cap and clamp.

Product Variants

350 L

grey

Product details
Capacity
350 litres
Maximum diameter D
820 mm
Minimum diameter D
693 mm
Height
975 mm
Weight
15 kg
Article number grey
4003851
add to watchlist
Product details
Capacity
350 litres
Maximum diameter D
820 mm
Minimum diameter D
693 mm
Height
975 mm
Weight
15 kg
Article number grey
4003851
add to watchlist
500 L

grey

Product details
Capacity
500 litres
Maximum diameter D
820 mm
Minimum diameter D
693 mm
Height
1,375 mm
Weight
18 kg
Article number grey
4003852
add to watchlist
Product details
Capacity
500 litres
Maximum diameter D
820 mm
Minimum diameter D
693 mm
Height
1,375 mm
Weight
18 kg
Article number grey
4003852
add to watchlist

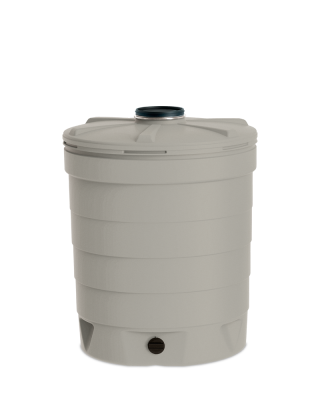

1,000 L

grey

Product details
Capacity
1,000 litres
Maximum diameter D
1,090 mm
Minimum diameter D
963 mm
Height
1,396 mm
Weight
30 kg
Article number grey
4003853
add to watchlist
Product details
Capacity
1,000 litres
Maximum diameter D
1,090 mm
Minimum diameter D
963 mm
Height
1,396 mm
Weight
30 kg
Article number grey
4003853
add to watchlist
Product details
Capacity
350 litres
Maximum diameter D
820 mm
Minimum diameter D
693 mm
Height
975 mm
Weight
15 kg
Article number grey
4003851
add to watchlist
Product details
Capacity
500 litres
Maximum diameter D
820 mm
Minimum diameter D
693 mm
Height
1,375 mm
Weight
18 kg
Article number grey
4003852
add to watchlist
Product details
Capacity
1,000 litres
Maximum diameter D
1,090 mm
Minimum diameter D
963 mm
Height
1,396 mm
Weight
30 kg
Article number grey
4003853
add to watchlist
Folleto SCHÜTZ DEPÓSITOS DE AGUA
Download PDF
SCHÜTZ CATÁLOGO DEPÓSITOS DE GASOIL, AGUA Y DEPURACIÓN

LISTA DE PRECIOS

Download PDF
AQUATONNE

350 l, 500 l, 1.000 l

Download PDF
