SCHÜTZ Iberica

AQUABLOCK XL –
CAPACITY AND MULTIFUNCTIONALITY.

Specially designed for a maximum storage capacity, easy access to the interior for cleaning and maintenance, multiple connectivities, robust and elegant

The Aquablock XL is:

  • Robust
  • Made of polyethylene (HDPE) and colour pigmented
  • Protected against solar radiation
  • Apt for drinking water, liquids for human consumption (such as wine, oil, etc.) as well as other liquids compatible with HDPE
  • 100 % recyclable

The Aquablock offers the following advantages:

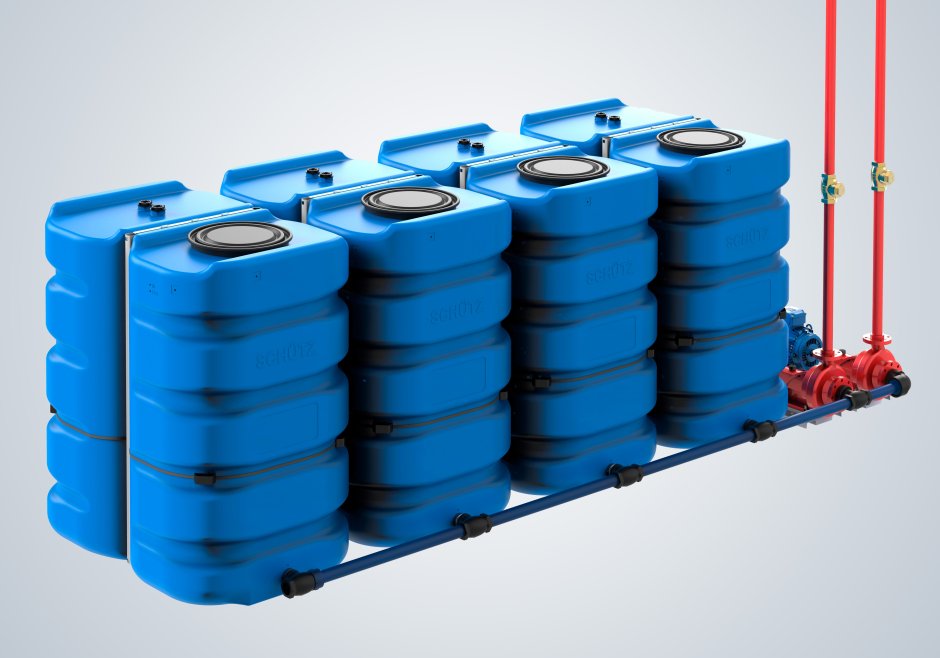

  • Ideal for its its use in pressure groups and fire fighting systems
  • Manhole (easy access to the interior)
  • Apt for the hygienic conservation of water to maintain its organoleptic properties (colour, smell, taste)
  • Possibility of outdoor installation
  • Complies with current legislation
  • Easy installation and assembly
  • Possibility of double drainage outlet

Ⓐ

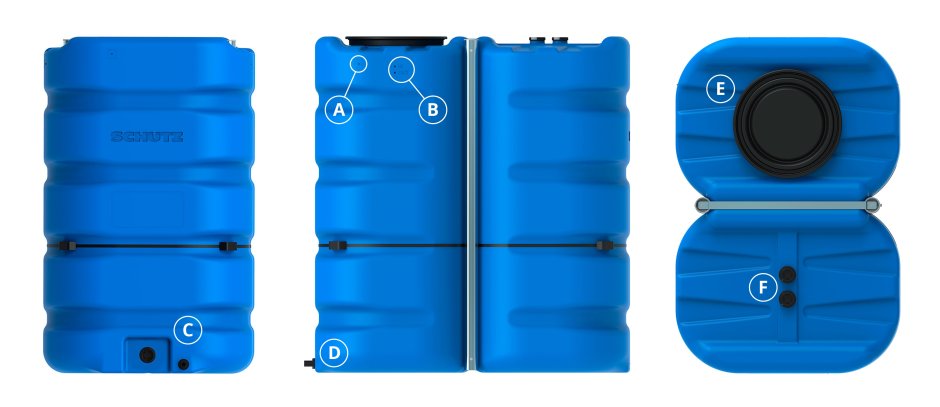

Flat and reinforced area for drilling and attaching a connection (level buoy, water pipe, etc.)


Ⓑ

Flat and reinforced area for drilling and attaching an inlet (for example rain water) or outlet pipe (overflow etc.)


Ⓒ

Opening for connections (inlet, outlet) with an inner thread of S75, with adapter to 2“ inner thread and an a cap with a outer thread of 2“ with a t-joint.

Ⓓ

Flat and reinforced area for drilling and attaching wall bushings (for example draining outlet)


Ⓔ

Manhole for easy access to the interior of the tank (for example for cleaning)


Ⓕ

2“ openings  for ventilation and for the inlet of liquids wth their corresponding screw caps


Product Variants

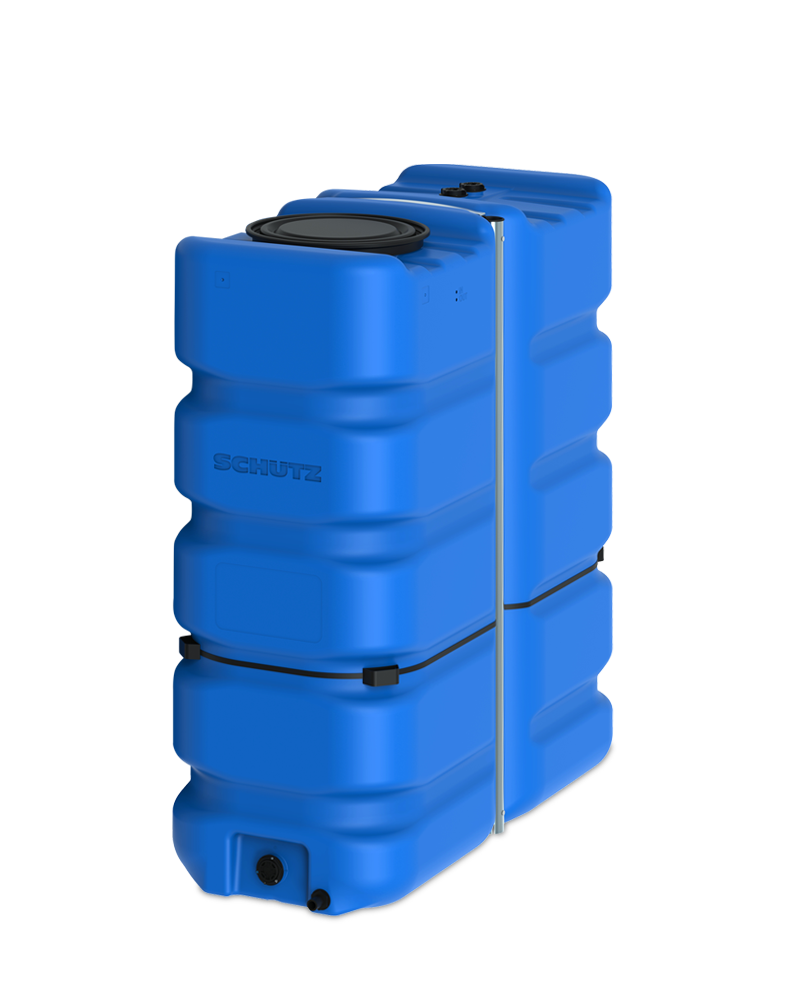

2,000 L

Aquablock XL

PRODUCT DETAILS
Capacity
2,000 litres
Length
1,850 mm
Width
790 mm
Height
1,650 mm
Weight
75 kg
Article number
4031464
add to watchlist
PRODUCT DETAILS
Capacity
2,000 litres
Length
1,850 mm
Width
790 mm
Height
1,650 mm
Weight
75 kg
Article number
4031464
add to watchlist

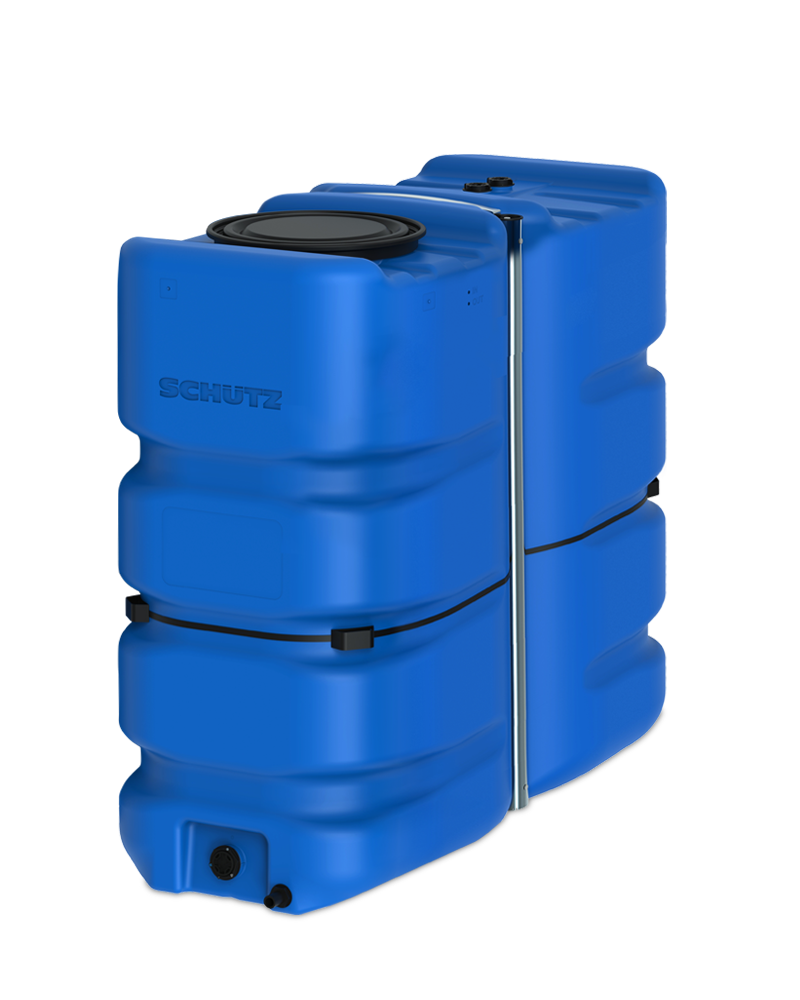

2,400 L

Aquablock XL

PRODUCT DETAILS
Capacity
2,400 litres
Length
1,850 mm
Width
790 mm
Height
1,950 mm
Weight
81 kg
Article number
4031465
add to watchlist
PRODUCT DETAILS
Capacity
2,400 litres
Length
1,850 mm
Width
790 mm
Height
1,950 mm
Weight
81 kg
Article number
4031465
add to watchlist

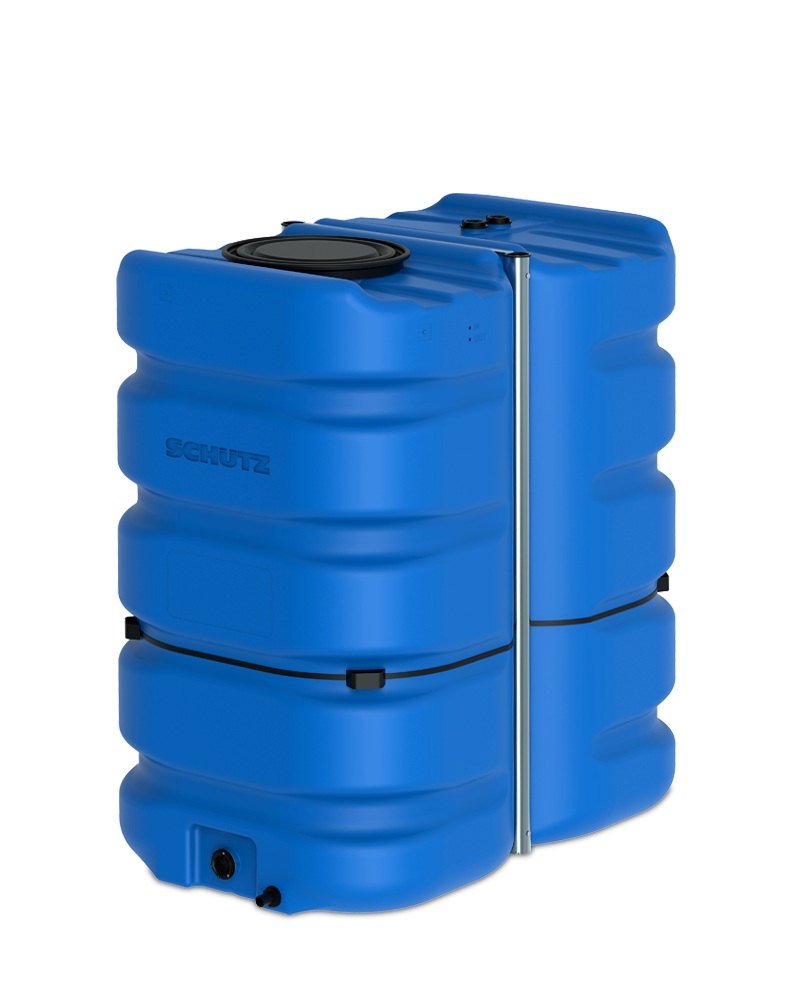

3,000 L

Aquablock XL

PRODUCT DETAILS
Capacity
3,000 litres
Length
1,725 mm
Width
1,150 mm
Height
1,850 mm
Weight
90 kg
Article number
4031466
add to watchlist
PRODUCT DETAILS
Capacity
3,000 litres
Length
1,725 mm
Width
1,150 mm
Height
1,850 mm
Weight
90 kg
Article number
4031466
add to watchlist
PRODUCT DETAILS
Capacity
2,000 litres
Length
1,850 mm
Width
790 mm
Height
1,650 mm
Weight
75 kg
Article number
4031464
add to watchlist
PRODUCT DETAILS
Capacity
2,400 litres
Length
1,850 mm
Width
790 mm
Height
1,950 mm
Weight
81 kg
Article number
4031465
add to watchlist
PRODUCT DETAILS
Capacity
3,000 litres
Length
1,725 mm
Width
1,150 mm
Height
1,850 mm
Weight
90 kg
Article number
4031466
add to watchlist
SCHÜTZ CATÁLOGO DEPÓSITOS DE GASOIL, AGUA Y DEPURACIÓN

LISTA DE PRECIOS

Download PDF
AQUABLOCK XL

2.000 l, 2.400 l, 3.000 l

Download PDF
Folleto SCHÜTZ DEPÓSITOS DE AGUA
Download PDF

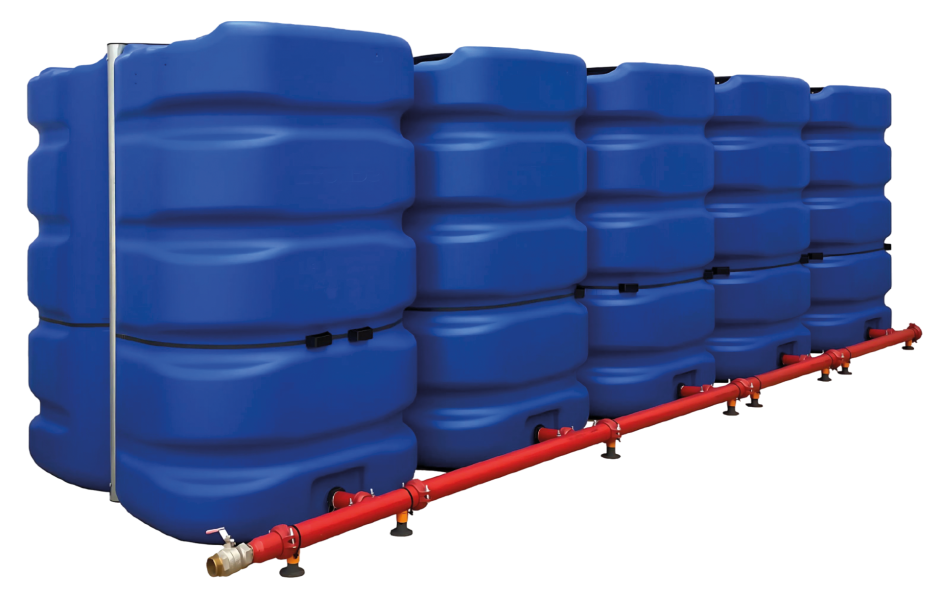

AQUABLOCK XL KIT BATERIA

6 x 2.000 l, 5 x 2.400 l, 4 x 3.000 l

Download PDF
