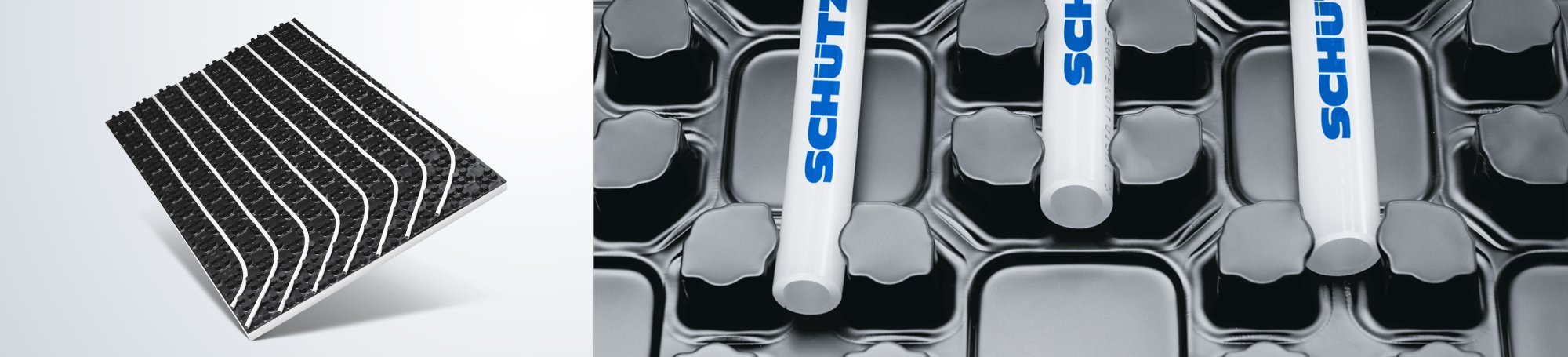

SCHÜTZ PROFILED system PANEL SYSTEMS – NO MORE COMPROMISES!

The profiled panel system is ideal for rooms of any shape, all common screed types and can be adapted to individual needs. Without compromising comfort, quality or flexibility.


All system panels are fully manufactured in-house. Permanent internal and external inspections also confirm the extraordinary high quality of all components.


Product advantages:

  • Easy integrated diagonal installation without clamping aids
  • Peg system technology: 1-man installation
  • For high traffic loads
  • Combined EPS-T thermal and impact sound insulation
  • DIN-certified
  • Vacuum-moulded plastic film
  • Tread-proof, foamed pipe-holding pegs
  • 5.5 cm grid pattern
  • Film overlap with press-on connection
  • Net floor area 1.34 m²
Suitable for duo-flex und tri-o-flex® system heating pipes
14 x 2 mm | 16 x 2 mm | 17 x 2 mm
Gesamtkatalog 2023

Entdecken Sie das Produktsortiment von SCHÜTZ.

Download PDF


Data sheet system panels

System profiled panel

Download PDF
Nockensystem

Kapitel 2

Download PDF


System profiled panels


Product Variants

Type EPS-T 11-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.45 m² K/W
Thermal conductivity λD
0.034 W/mK (WLS 035)
Dynamic stiffness
SD 50
Impact sound reduction ΔLw,R
24 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 9 mm
27 mm with nops
Panel size
907 x 1.472  mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress at 10 % compression
-
Article number
4042452
Packaging unit
24.12 m²
18 Panels
PU/pallet
120,6 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.45 m² K/W
Thermal conductivity λD
0.034 W/mK (WLS 035)
Dynamic stiffness
SD 50
Impact sound reduction ΔLw,R
24 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 9 mm
27 mm with nops
Panel size
907 x 1.472  mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress at 10 % compression
-
Article number
4042452
Packaging unit
24.12 m²
18 Panels
PU/pallet
120,6 m²
add to watchlist

Type EPS-T 30-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.85 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040) (impact sound)
0.034 W/mK (WLG 035) (profiles)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
46 mm with nops
Panel size
907 x 1.472 mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-
Article number
4006923
Packaging unit
13.40 m²
10 Panels
PU/pallet
67.00 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.85 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040) (impact sound)
0.034 W/mK (WLG 035) (profiles)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
46 mm with nops
Panel size
907 x 1.472 mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-
Article number
4006923
Packaging unit
13.40 m²
10 Panels
PU/pallet
67.00 m²
add to watchlist

Type EPS-T 20-2 (DES sg)

Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.59 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040) (impact sound)
0.034 W/mK (WLG 035) (profiles)
Dynamic stiffness
SD 40
Impact sound reduction ΔLw,R
25 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
36 mm with nops
Panel size
907 x 1.472  mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression
-
Article number
4013056
Packaging unit
16.08 m²
12 Panels
PU/pallet
80.40 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.59 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040) (impact sound)
0.034 W/mK (WLG 035) (profiles)
Dynamic stiffness
SD 40
Impact sound reduction ΔLw,R
25 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
36 mm with nops
Panel size
907 x 1.472  mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression
-
Article number
4013056
Packaging unit
16.08 m²
12 Panels
PU/pallet
80.40 m²
add to watchlist

Type EPS 150-11 (DEO)

Technical data
ÖNORM
-
Thermal resistance RD
0.45 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Dynamic stiffness
–
Impact sound reduction ΔLw,R
–
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 11 mm
29 mm with nops
Panel size
907 x 1.472 mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
-
Max. compressive stress
at 10 % compression		150 kPa (acc. to EN 13163)
Article number
4006926
Packaging unit
24.12 m²
18 Panels
PU/pallet
120.60 m²
add to watchlist
Technical data
ÖNORM
-
Thermal resistance RD
0.45 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Dynamic stiffness
–
Impact sound reduction ΔLw,R
–
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 11 mm
29 mm with nops
Panel size
907 x 1.472 mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
-
Max. compressive stress
at 10 % compression		150 kPa (acc. to EN 13163)
Article number
4006926
Packaging unit
24.12 m²
18 Panels
PU/pallet
120.60 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.45 m² K/W
Thermal conductivity λD
0.034 W/mK (WLS 035)
Dynamic stiffness
SD 50
Impact sound reduction ΔLw,R
24 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 9 mm
27 mm with nops
Panel size
907 x 1.472  mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress at 10 % compression
-
Article number
4042452
Packaging unit
24.12 m²
18 Panels
PU/pallet
120,6 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.85 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040) (impact sound)
0.034 W/mK (WLG 035) (profiles)
Dynamic stiffness
SD 20
Impact sound reduction ΔLw,R
29 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 28 mm
46 mm with nops
Panel size
907 x 1.472 mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression		-
Article number
4006923
Packaging unit
13.40 m²
10 Panels
PU/pallet
67.00 m²
add to watchlist
Technical data
ÖNORM
B 6000: EPS-T 650 kg/m²
Thermal resistance RD
0.59 m² K/W
Thermal conductivity λD
0.039 W/mK (WLG 040) (impact sound)
0.034 W/mK (WLG 035) (profiles)
Dynamic stiffness
SD 40
Impact sound reduction ΔLw,R
25 dB*
Fire behaviour RtF
E (EN 13501-1)
Panel thickness
dL - c = 18 mm
36 mm with nops
Panel size
907 x 1.472  mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
5 kPa (acc. to EN 13163)
Max. compressive stress
at 10 % compression
-
Article number
4013056
Packaging unit
16.08 m²
12 Panels
PU/pallet
80.40 m²
add to watchlist
Technical data
ÖNORM
-
Thermal resistance RD
0.45 m² K/W
Thermal conductivity λD
0.034 W/mK (WLG 035)
Dynamic stiffness
–
Impact sound reduction ΔLw,R
–
Fire behavior RtF
E (EN 13501-1)
Panel thickness
dL - c = 11 mm
29 mm with nops
Panel size
907 x 1.472 mm
Packaging unit
1,540 x 450 x 950 mm
Max. load capacity
-
Max. compressive stress
at 10 % compression		150 kPa (acc. to EN 13163)
Article number
4006926
Packaging unit
24.12 m²
18 Panels
PU/pallet
120.60 m²
add to watchlist

*acc. to DIN 4109-34: 2016-07 for areal screed mass ≥ 120 kg/m²
