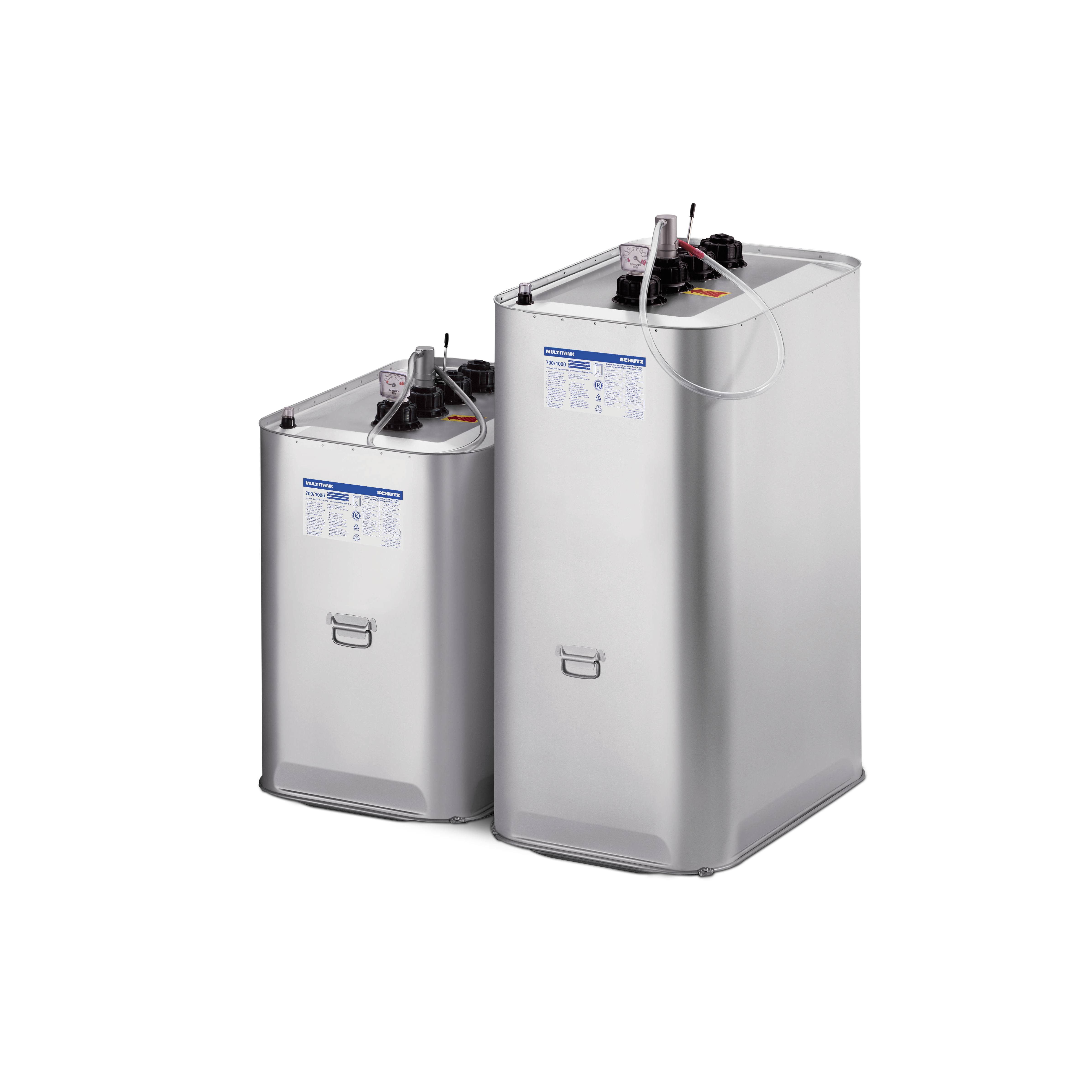

THE SCHÜTZ MULTITANK – THE MULTI AMONG THE TANKS.

In industry, agriculture or private households, the SCHÜTZ MULTITANK offers the ideal solution for storage and disposal of heating oil or diesels.


The SCHÜTZ MULTITANK steel offers

  • Double-walled safety due to the corrosion-free inner tanks made of HDPE and a sturdy outer container made of galvanised steel.
  • Maximum storage volume with minimum spatial requirements
  • No oil odour due to SMP odour barrier
  • Easy setup without the need of a special room or collection pan (outside water conservation areas)
  • Suitable for storing bio-diesel, heating oil with biogenic additives and pure vegetable oil

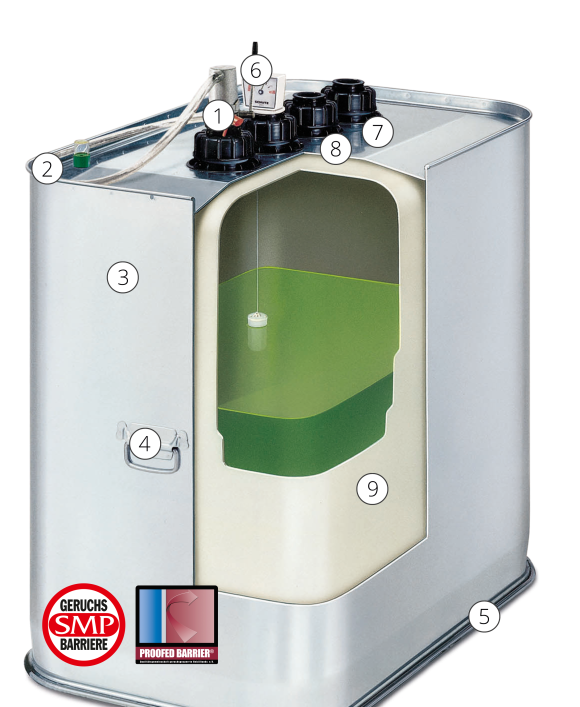

Accessories

  1. Extraction pump, self-draining siphon pump with induction pipe and drain hose 700 l / 1.000 l - Art.-Nr. 4020392
  2. Optical leakage monitor as standard,
    700 l - Art.-Nr. 2051975
    1.000 l - Art.-Nr. 2051976
  3. Sheet steel outer container with 100% collection volume, hot-dip galvanised on both sides, seamed bottom and welded casing
  4. Carrier handles for easy handling
  5. Galvanised tubular frame for floor ventilation
  6. Content indicator as standard - Art.-Nr. 2029612
  7. Filler neck with 2" inside thread for connection to fuel nozzle
  8. Additional sockets, e.g. for installation of an overflow protection device
  9. Inner container in polyethylene with SMP odour barrier

GREEN FUELS READY

WE ARE READY FOR GREEN FUELS!


This label is awarded to products that can store greenhouse gas-reduced liquid fuels from renewable sources. So you can start flexibly into the future with our products.

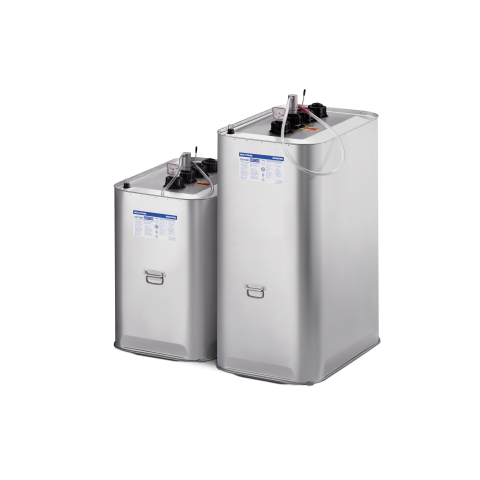

Product Variants

Multitank

700 L

Product details
ApprovalZ-40.21-133
Length1,135 mm
Width727 mm
Height 1,100 mm
Weightapprox. 62 kg
Article number4019463
add to watchlist
Product details
ApprovalZ-40.21-133
Length1,135 mm
Width727 mm
Height 1,100 mm
Weightapprox. 62 kg
Article number4019463
add to watchlist
Multitank

1,000 L

Product details
ApprovalZ-40.21-133
Length1,135 mm
Width727 mm
Height 1,540 mm
Weightapprox. 81 kg
Article number4019464
add to watchlist
Product details
ApprovalZ-40.21-133
Length1,135 mm
Width727 mm
Height 1,540 mm
Weightapprox. 81 kg
Article number4019464
add to watchlist
Product details
ApprovalZ-40.21-133
Length1,135 mm
Width727 mm
Height 1,100 mm
Weightapprox. 62 kg
Article number4019463
add to watchlist
Product details
ApprovalZ-40.21-133
Length1,135 mm
Width727 mm
Height 1,540 mm
Weightapprox. 81 kg
Article number4019464
add to watchlist
Brochure SCHÜTZ MULTI STORAGE AND DISPOSAL TANKS –

THE SAFE AND CONVENIENT STORAGE SOLUTION.

Download PDF
Zulassung TANK IM TANK Stahl, Multitank, VET Stahl

Z-40.21-133

Download PDF
Gesamtkatalog 2023

Entdecken Sie das Produktsortiment von SCHÜTZ.

Download PDF
Brochure SMP permeation barrier

The SMP process seals PE drums and prevents the contents from permeating out.

Download PDF
Datenblatt Multitank

700 l, 1.000 l

Download PDF
